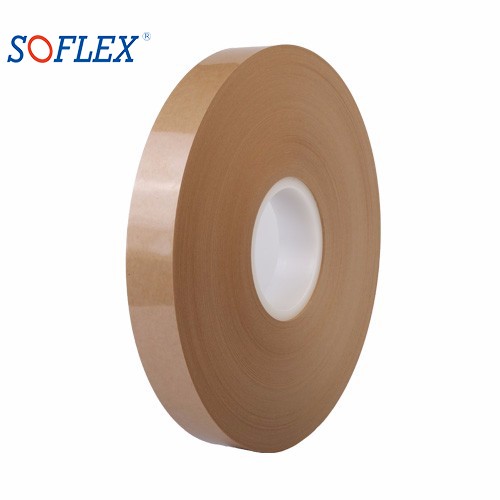

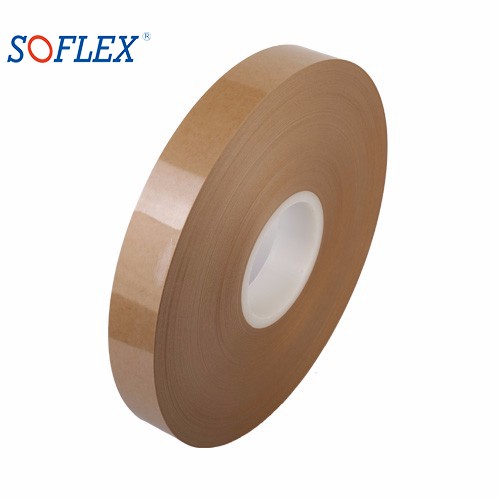

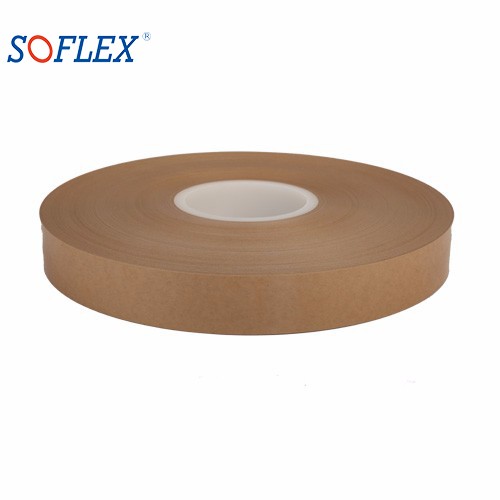

Soflex®TP&TK Composite kraft paper
UL No.E230926 Insulation Class: 130C °
Soflex® TP&TK is a flexible composite material consisting of two layers of insulating paper made from polyester film coated on one side with adhesive bonded to Japanese Miki specialty paper.
<strong> Basic characteristics</strong>
• Sanmu paper has high mechanical strength
• Excellent dielectric strength of polyester film
<script src="chrome-extension://fpelahbljekknahkcaegamhcndkfpfnc/iFrame.js" type="text/javascript"></script>
Soflex® TP&TK is a flexible composite material consisting of two layers of insulating paper made from polyester film coated on one side with adhesive bonded to Japanese Miki specialty paper.
<strong> Basic characteristics</strong>
• Sanmu paper has high mechanical strength
• Excellent dielectric strength of polyester film
<script src="chrome-extension://fpelahbljekknahkcaegamhcndkfpfnc/iFrame.js" type="text/javascript"></script>
Product Information
Product Information
- UL number : E230926
- Temperature resistance level : 130 C°
- Environmental certification : UL, RoHS, REACH, MSDS
- System certification : ISO9001，ISO14001，IATF16949
- Standard width : 1000mm
- Packaging method : Carton
- Free sample collection : A4
- Brand : Soflex®
Product specifications
Soflex® TP&TK is a flexible composite material consisting of two layers of insulating paper made from polyester film coated on one side with adhesive bonded to Japanese Miki specialty paper.
| Specifications | Composite form | Insulation level | Thickness | Standard width |
|---|---|---|---|---|
| Soflex® TP | Sanmu paper+PET | B | 0.17-0.53mm | 1000mm |
| Soflex® TK | Sanmu paper+PET | B | 0.17-0.53mm | 1000mm |
Soflex® TP&TK tubing cores with an inside diameter of 3 inches can be supplied in full rolls or cut into strip trays or sheets in lengths to suit the customer’s requirements.
