Soflex®NSN Composite insulation paper
Insulation Class: 180°C
Soflex®NSN is a three-layer flexible composite with two outer layers of NOMEX® paper and an inner layer of polyphenylene sulfide film from Toray's Torelina®.
Basic characteristics
• Excellent oil resistance, hydrolysis resistance, and chemical resistance
• Excellent temperature resistance and mechanical properties
• Excellent tensile tear resistance and dielectric strength of polyphenylene sulfide film
Product Information
UL number : E230926
Temperature resistance level : 180°C
Environmental certification : UL, RoHS, REACH, MSDS
System certification : ISO9001，ISO14001，IATF16949
Standard width : 914mm
Packaging method : Carton
Free sample collection : A4
Brand : Soflex®
Product specifications
Soflex® NSN is a three-layer flexible composite with two outer layers of NOMEX® paper and an inner layer of polyphenylene sulfide film from Toray’s Torelina®.
| Specifications | Composite form | Insulation level | Thickness | Standard width |
| Soflex® NSN | NOMEX-PPS-NOMEX | H | 0.17-0.28mm | 914mm |

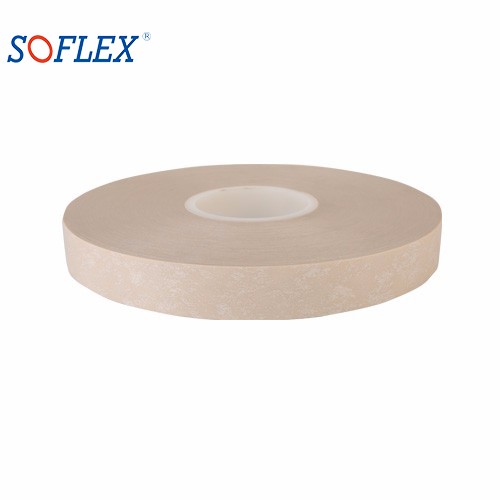

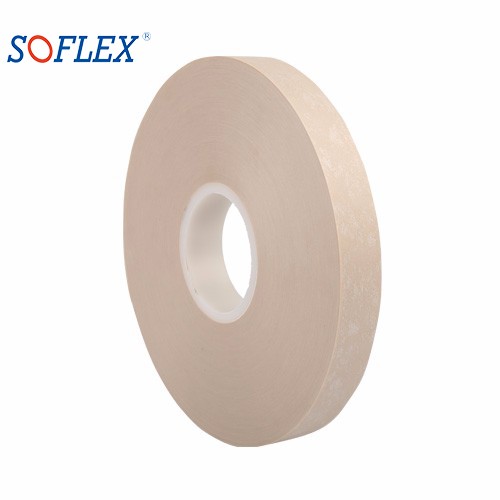

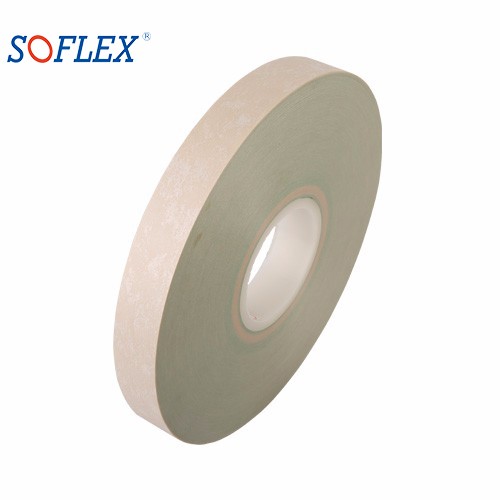

Soflex® NSN tubing cores have an inside diameter of 3 inches and can be supplied in full rolls or cut into strip trays or sheets in lengths to suit the customer’s requirements.
Other information
Product application
Soflex® NSN Soft composite paper, with its excellent properties, is widely used for slot insulation, phase insulation, and turn insulation in new energy vehicle drive motors, especially in oil cooled drive motors.
Storage suggestions
1.Store in a dry and clean room at room temperature.
2.Do not approach fire sources, heating, or direct sunlight.
3.The storage period is generally 12 months. If it exceeds the storage period and passes the technical standard inspection, it can still be used.
