Soflex®NMN Insulation paper
Insulation Class: 155°C - 220°C
Soflex® NMN is a three-layer flexible composite material with two outer layers of DuPont NOMEX® paper and an inner layer of polyester film.
Basic characteristics
• Excellent temperature resistance and mechanical properties
• Anti elongation and tear strength, as well as excellent dielectric strength of polyester film
Product Information
UL number : E230926
Temperature resistance level : 155°C – 220°C
Environmental certification : UL, RoHS, REACH, MSDS
System certification : ISO9001，ISO14001，IATF16949
Standard width : 914mm
Packaging method : Carton
Free sample collection : A4
Brand : Soflex®
Product specifications
Soflex® NMN is a three-layer flexible composite material with two outer layers of NOMEX® paper and an inner layer of polyester film.
| Specifications | Composite form | Insulation level | Thickness | Standard width |
| Soflex® NMN | NOMEX-Polyester-NOMEX | F~C | 0.14-0.63mm | 914mm |
| Soflex® NM | NOMEX- Polyester film | F~C | 0.08-0.40mm | 914mm |

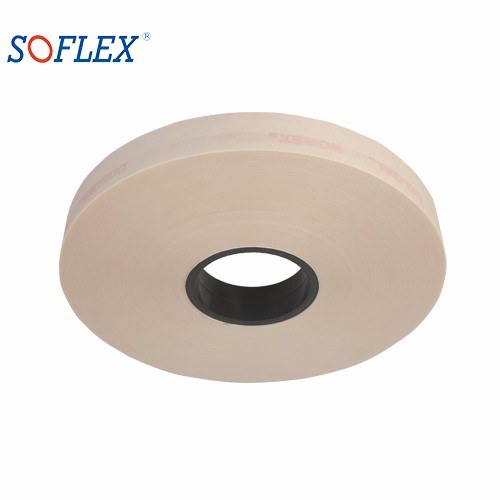

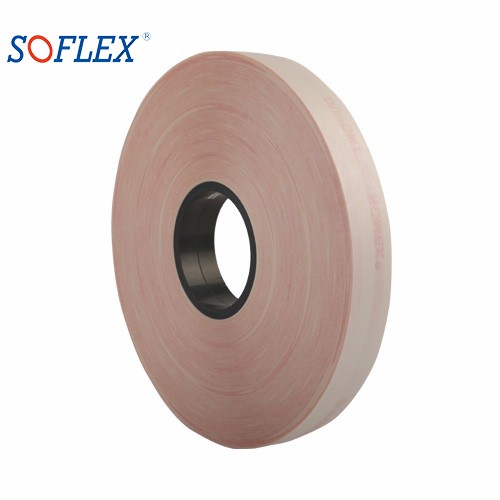

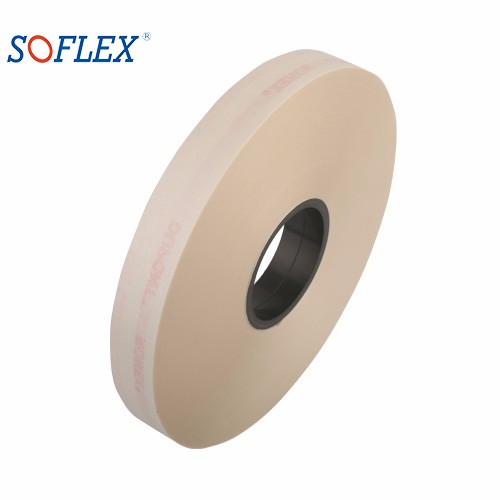

Soflex® NMN tubing cores with an inside diameter of 3 inches can be supplied in full rolls or cut into strip trays or sheets in lengths to suit the customer’s requirements.
Other information
Product application
Soflex® NMN flexible laminated paper is widely used in electrical insulation systems due to its excellent properties. It is mainly used for slot insulation, turn-to-turn insulation and liner insulation of F-C class motors.
Storage suggestions
1.Store in a dry and clean room at room temperature.
2.Do not approach fire sources, heating, or direct sunlight.
3.The storage period is generally 12 months. If it exceeds the storage period and passes the technical standard inspection, it can still be used.
