Soflex®DMD Insulation paper
Insulation Class: 130 ° C -155C ° C
Soflex®DMD is a flexible composite material consisting of a polyester film coated on both sides with adhesive bonded polyester fiber nonwoven as a three-ply insulating paper.
Basic characteristics
• Good impregnation performance of non-woven fabric
• Excellent dielectric strength of polyester film
Product Information
UL number : E230926
Temperature resistance level : 130 C°-155C°
Environmental certification : UL, RoHS, REACH, MSDS
System certification : ISO9001，ISO14001，IATF16949
Standard width : 913~1007mm
Packaging method : Carton
Free sample collection : A4
Brand : Soflex®
Product specifications
Soflex® DMD is a flexible composite material consisting of a polyester film coated on both sides with adhesive bonded polyester fiber nonwoven (nonwoven) as a three-ply insulating paper.
| Specifications | Composite form | Insulation level | Thickness | Standard width |
| Soflex® DMD | Non woven fabric PET non-woven fabric | B~F | 0.16-0.90mm | 1000mm |
| Soflex® DM | Non woven fabric PET | B~F | 0.16-0.90mm | 1000mm |

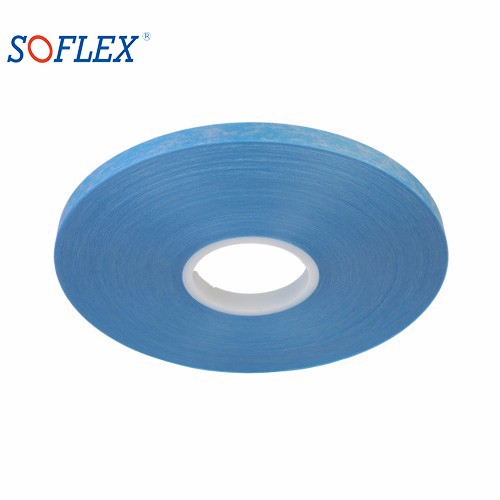

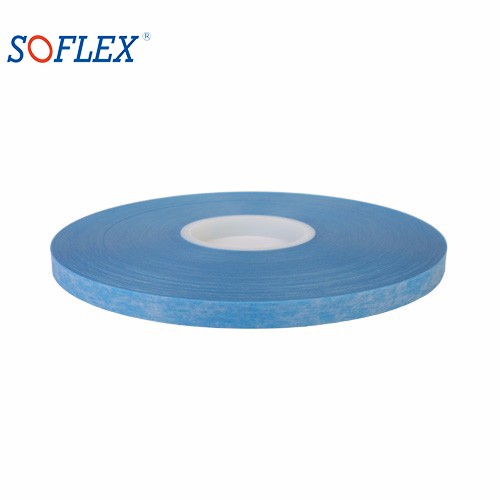

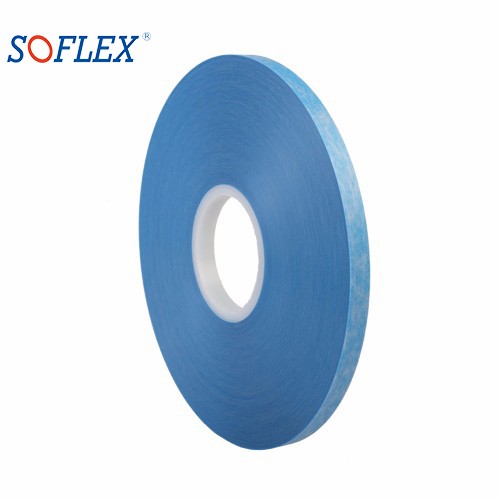

Soflex® DMD tubing cores with an inside diameter of 3 inches can be supplied in full rolls or cut into strip trays or sheets in lengths to suit the customer’s requirements.
Other information
Product application
Soflex® DMD flexible laminated paper is widely used in electrical insulation systems due to its excellent properties. It is mainly used for slot insulation, turn-to-turn insulation and liner insulation of B~F class motors.
Storage suggestions
1.Store in a dry and clean room at room temperature.
2.Do not approach sources of fire, heating, or direct sunlight.
3.The storage period is generally 12 months. If it exceeds the storage period and passes the technical standard inspection, it can still be used.
