As industrial automation and high-power applications continue to evolve, the electric motor remains the silent workhorse of global infrastructure. Whether powering high-speed manufacturing lines, heavy-duty ventilation systems, or the drivetrain of a new energy vehicle, the reliability of these motors is non-negotiable. At Sui On Insulating, we have spent over 40 years specializing in the electrical insulation industry, providing advanced material solutions that protect the mbaost sensitive components of high-power equipment. From our perspective as material engineers, an electric motor is only as robust as the dielectric barrier protecting its windings. Understanding the core functions of motor insulation is essential for any B2B partner looking to optimize system design and extend the operational lifecycle of their rotating electrical assets.

The Fundamental Barrier: Why Insulation Matters

The primary purpose of motor insulation is to maintain electrical separation between the current-carrying conductors and the grounded metallic motor frame, as well as between adjacent turns within the winding itself. While this may seem straightforward, the operating reality is exceptionally complex. Motor windings are subjected to continuous thermal cycling, electromagnetic vibrations, and, in the case of variable frequency drive (VFD) applications, high-frequency voltage spikes that can induce partial discharge.

Without a robust insulating system, the winding insulation would degrade rapidly, eventually leading to a short circuit or a ground fault. In industrial environments where downtime costs can run into thousands of dollars per hour, the cost of implementing superior insulation systems during the manufacturing stage is minimal compared to the catastrophic financial consequences of an unexpected motor failure.

Advancing Reliability with electric motor insulation

To ensure peak performance, manufacturers must prioritize materials that provide consistent dielectric strength under extreme conditions. For critical industrial applications, the choice of substrate is paramount. Arclin(formerly DuPont)® Nomex® has long been the gold standard for high-performance electric motor insulation. This high-density aramid paper offers superior thermal endurance, maintaining its physical and electrical properties at temperatures up to 220°C. By acting as a durable slot liner and phase barrier, it prevents the physical damage that can occur during coil insertion, ensuring the motor survives the rigors of high-speed industrial duty cycles.

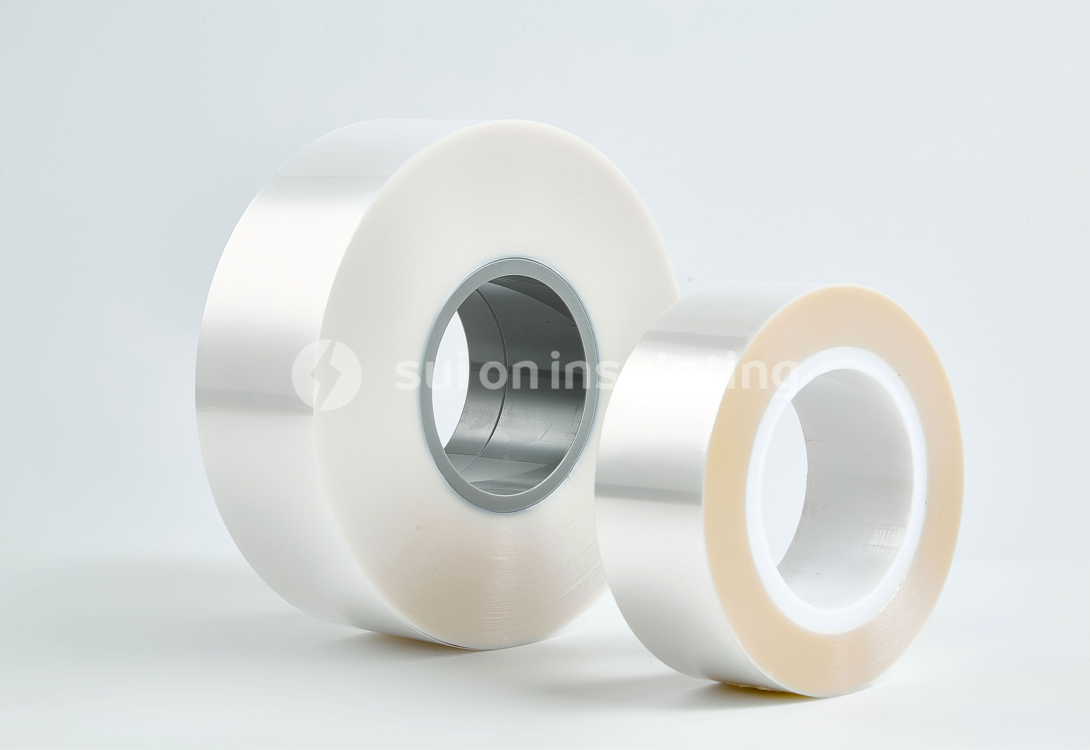

In addition to aramid papers, ultra-thin polymer films play a major role in modern motor miniaturization. Qnity(formerly DuPont)® Kapton® polyimide film is frequently used in high-stress areas where space is limited but thermal requirements are severe. With its ability to handle continuous operating temperatures between 200°C and 240°C, it allows engineers to optimize the copper fill factor while ensuring high levels of dielectric safety. Furthermore, Mylar® polyester film is widely specified for its excellent dimensional stability and physical toughness, providing a reliable, cost-effective layer for temperatures up to 155°C.

Customized Solutions from Sui On Insulating

At Sui On Insulating, we recognize that no two industrial motor designs are exactly alike. Modern motors are increasingly being designed for higher power densities and unique environmental conditions, which demands insulation materials that can be easily processed and integrated. Our proprietary, UL-certified SOFLEX® brand of composite materials was created to address these diverse requirements. By combining the exceptional heat resistance of aramid papers with the physical toughness of polyester films, SOFLEX® laminates offer the mechanical versatility required for automatic coil winding machines without compromising dielectric performance.

Furthermore, we understand the logistical challenges faced by OEM manufacturers in today’s rapid-paced global market. Our factory is fully equipped with advanced testing and production infrastructure, allowing us to pivot quickly to meet specific engineering requirements. Whether you require specific composite thicknesses for a custom slot insulation project or need large-scale supply for standardized motor production, our ISO 9001, ISO 14001, and IATF 16949 certified processes guarantee quality consistency at every step.

Engineering for Future Power Demands

Against the backdrop of tightening global energy efficiency regulations, the rapid expansion of industrial electrification, and the growing prevalence of variable frequency drives (VFDs) across high-power industrial scenarios, performance requirements for electric motor systems continue to grow more rigorous. The widespread adoption of VFD technology, while delivering precise speed control and energy savings, also introduces heightened electrical stress and partial discharge risks that place additional strain on internal insulation structures. Against this context, high-quality insulation materials have evolved far beyond a basic protective layer to become a core foundational component that directly shapes overall system efficiency, long-term operational reliability and total cost of ownership. By adopting premium insulation substrates with optimized dielectric and thermal conductivity properties, engineers can develop motors with lower steady-state operating temperatures, extended service life, and steady, dependable performance even under highly volatile load conditions and irregular grid fluctuations.

At Sui On Insulating, our core technical mission is to provide our global B2B partners with specialized material expertise, rigorously tested insulation products and tailored solution support to address these evolving industry challenges. We invite you to collaborate with our in-house expert engineering team to conduct a comprehensive review of your current insulation specifications, uncover optimization potential across material matching and structural design, and systematically enhance the total lifespan and comprehensive performance of your motor systems. With deep domain experience across industrial transmission, renewable energy equipment and other key sectors, we support partners in aligning with the latest efficiency standards while reducing unplanned downtime. Investing in superior material foundations today will empower your enterprise to build robust, reliable power systems that maintain a competitive edge in tomorrow’s fast-evolving energy landscape.
